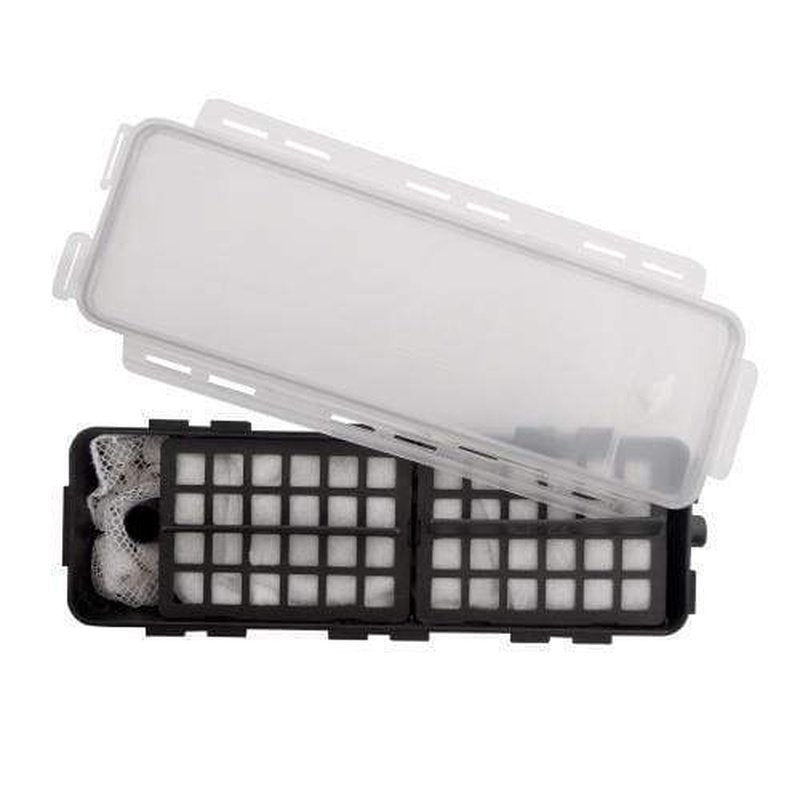

Replacement Filter Box for the Blue Planet Paradiso 160L triangle aquarium, both the EG518 & newer model EG518HP.
There are two R-060 Filter Boxes for the two different models of the Paradiso 160L Corner aquarium, both of which are labeled with R-060 or FB-060.
Measure your box and use the dimensions below for the correct box for your tank or contact us for assistance.
|
|
L x W x H of the box (excluding lid and outlet) approx |
R-060 / FB-065
|
Original Paradiso 160L, was supplied with 2 x 13w light tubes. Model: EG518
|
39.5 x 12.5 x 9 cm |
R-060 / FB-060
|
New Paradiso 160L, was supplied with factory fitted LED. Model: EG518HP.
|
40.5 x 9.5 x 8.5 cm |
The new model R-060 is longer and thinner than the old style R-060, and so these boxes are not interchangeable.
The older model Paradiso, originally fitted with 2 x 13w Fluorescent lights, only fit the EG409 R-060/FB-065 for aquarium model number EG518.
The newer LED Paradiso, with the 8 x 1w High Powered LED lighting, only fit the EG743 R-060/FB-060 for aquarium model number EG518HPLED.
To confirm, view the model info on the tank top which shows which lighting the tank has. If it shows 8 x 1w LED, you have the newer model. If it states 2 x 13w, you have the older model.
Includes box, lid & cartridge media. Pipe sets and outlet pipes are available separately
The entire Blue Planet Filter Box range:
Lid Code |
Aquarium |
Approx. box Size (excluding lid & outlet) L x W X H
|
R-010 / FB-010 |
8L Midi |
15 x 5.3 x 4.5 cm |
R-020 / FB-020 Inlet on side
|
Hexy Midi 21L, Delta 20L, and the older model Classic 20L (with the 5w bulb) |
20 x 5.3 x 5.6 cm |
R-020 / FB-020 Inlet on bottom
|
Betta Plus 8L |
20 x 5.3 x 5.6 cm |
R-025 / FB-025 |
Classic 20L, new model with LED only
|
33 x 7 x 5cm |
R-030 / FB-030 |
Hexy Maxi 57L & Hexy Mega 68L |
20 x 7.5 x 6 cm |
R-040 / FB-040 |
Older model Classic range |
21.5 x 8 x 7 cm |
R-050 / FB-050 |
Lagoon 70L, Haven 70L & Kingdom 100L |
30 x 9.5 x 8.5 cm |
R-055 / FB-055 |
Classic 40L, 50L & 70L |
33 x 8 x 7 cm |
R-060 / FB-065
|
Atlantis 140L, Vista 160L & original Paradiso 160L with the 2 x 13w fluro
|
39.5 x 12.5 x 9 cm |
R-060 / R-060-SC / FB-060
|
New Model LED Paradiso 160L only.
|
40.5 x 9.5 x 8.5 cm |
R-070 / FB-070 |
Orient 220L & Atlantic 200L |
54 x 13 x 10 cm |
*Filter boxes have been redesigned and no longer include the dividers provided in the older model filter boxes, to suit the new Filter Cartridges, available here: R-050 R-060 & R-070. The codes have also been updated on the box lid, and now show FB in replace of the old R code (i.e FB-050 instead of R-050, FB-020 instead of R-020).
